One Rectangle

Hello every one, i want to offering you Dynamic block that cover you need to create working drawing. Especially for cabinet working drawing. Otherwise you can use this block for many purpose like Wallpanel, Partition, and another working drawing that have Plan, Front view, Side view and Section.

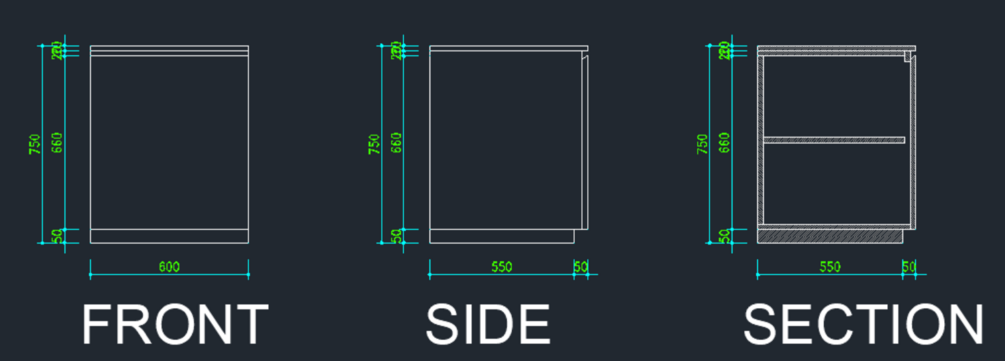

To make you clearly understanding, you can view the video that show you how to create cabinet working drawing from Plan, Front, Side and Section view with less than 4 minutes. And of course if you have familiar with this block, you will create working drawing faster.

What will you get from this File?

1 dwg file that contain 1 Block named One Rectangle.

Bonus 1 Dimension style that you can use for sheet paper scaled to 1:25

Block Possibility Options:

• Plain (Empty Rectangle)
• Section (Rectangle with hatch)
• Section with Rear Led
• Section with Front Led
• Door Cabinet Side View
• Door Section
• Door Section without Stoper

Advantages for this Dynamic block:

• Only One Block for all
• Copy, Choose and Stretch (it's fun)
• No need to Trim or Extend
• Make file lighter and faster loading
• Unitless so you can use it for metric or Inch
• Work in AutoCAD from 2010 and above
• Work smoother with Intellicad engine from 2025 (zwcad 2025, Progecad 2025, Back2CAD 2025 and above)

If any Question and or Suggestion, please contact me. Thank you for pay this Excellent Block.
